LR: Prediction / classification

STA 210 - Spring 2022

Dr. Mine Çetinkaya-Rundel

Welcome

Topics

• Bulding predictive logistic regression models
• Sensitivity and specificity
• Making classification decisions

Computational setup

# load packages
library(tidyverse)
library(tidymodels)
library(openintro)
library(knitr)

# set default theme and larger font size for ggplot2
ggplot2::theme_set(ggplot2::theme_minimal(base_size = 20))

Data

openintro::email

These data represent incoming emails for the first three months of 2012 for an email account.

• Outcome: spam - Indicator for whether the email was spam.
• Predictors: spam, `to_multiple, from, cc, sent_email, time, image, attach, dollar, winner, inherit, viagra, password, num_char, line_breaks, format, re_subj, exclaim_subj, urgent_subj, exclaim_mess, number.

See here for more detailed information on the variables.

Training and testing split

# Fix random numbers by setting the seed
# Enables analysis to be reproducible when random numbers are used
set.seed(1116)

# Put 75% of the data into the training set
email_split <- initial_split(email)

# Create data frames for the two sets
email_train <- training(email_split)
email_test  <- testing(email_split)

Exploratory analysis

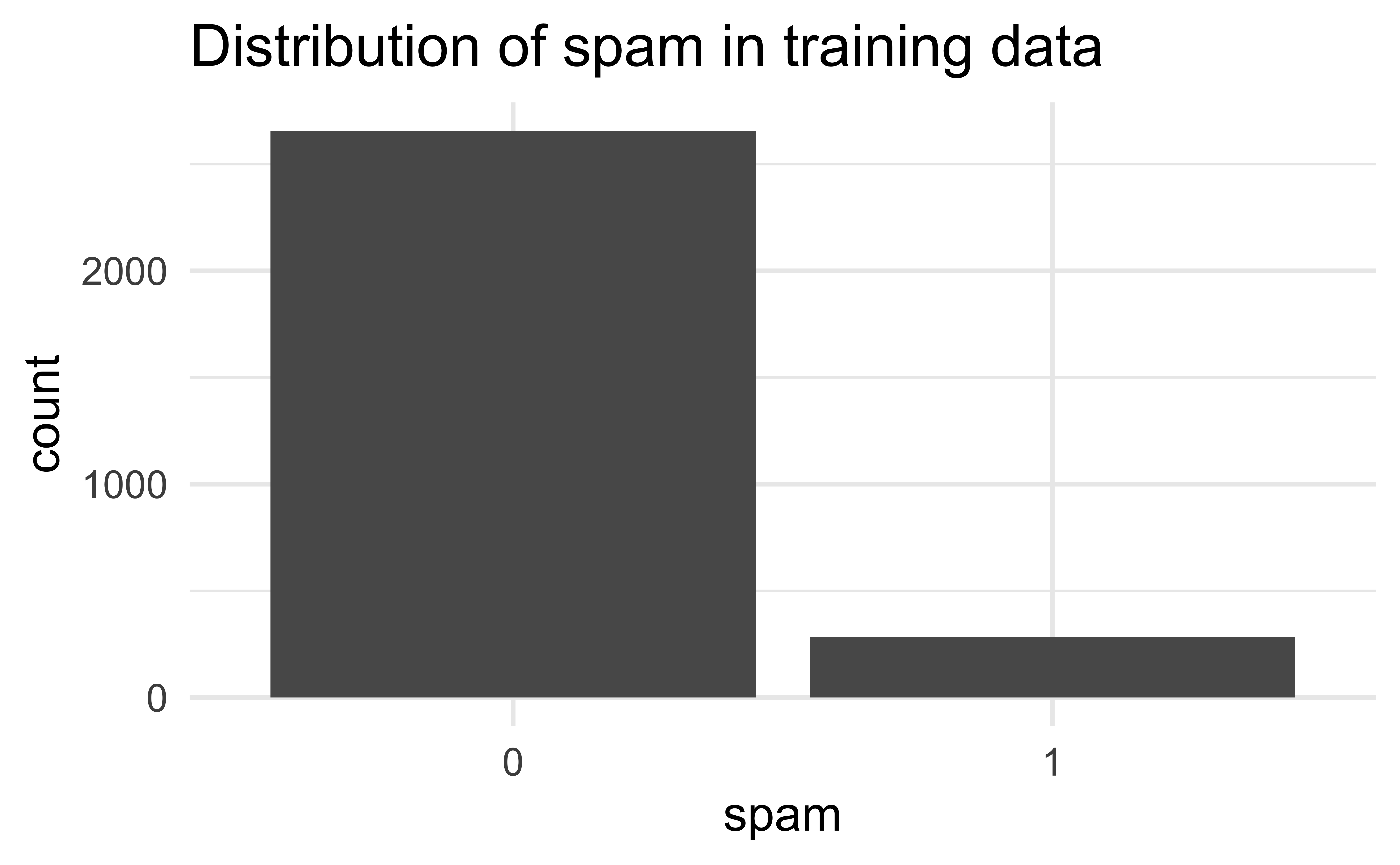

The sample is unbalanced with respect to spam.

Reminder: Modeling workflow

• Create a recipe for feature engineering steps to be applied to the training data

• Fit the model to the training data after these steps have been applied

• Using the model estimates from the training data, predict outcomes for the test data

• Evaluate the performance of the model on the test data

Start with a recipe

Initiate a recipe

email_rec <- recipe(
  spam ~ .,          # formula
  data = email_train  # data to use for cataloging names and types of variables
  )
summary(email_rec)

# A tibble: 21 × 4
   variable     type    role      source
   <chr>        <chr>   <chr>     <chr>
 1 to_multiple  nominal predictor original
 2 from         nominal predictor original
 3 cc           numeric predictor original
 4 sent_email   nominal predictor original
 5 time         date    predictor original
 6 image        numeric predictor original
 7 attach       numeric predictor original
 8 dollar       numeric predictor original
 9 winner       nominal predictor original
10 inherit      numeric predictor original
11 viagra       numeric predictor original
12 password     numeric predictor original
13 num_char     numeric predictor original
14 line_breaks  numeric predictor original
15 format       nominal predictor original
16 re_subj      nominal predictor original
17 exclaim_subj numeric predictor original
18 urgent_subj  nominal predictor original
19 exclaim_mess numeric predictor original
20 number       nominal predictor original
21 spam         nominal outcome   original

Remove certain variables

email_rec <- email_rec %>%
  step_rm(from, sent_email)

Recipe

Inputs:

      role #variables
   outcome          1
 predictor         20

Operations:

Delete terms from, sent_email

Feature engineer date

email_rec <- email_rec %>%
  step_date(time, features = c("dow", "month")) %>%
  step_rm(time)

Recipe

Inputs:

      role #variables
   outcome          1
 predictor         20

Operations:

Delete terms from, sent_email
Date features from time
Delete terms time

Discretize numeric variables

email_rec <- email_rec %>%
  step_cut(cc, attach, dollar, breaks = c(0, 1))

Recipe

Inputs:

      role #variables
   outcome          1
 predictor         20

Operations:

Delete terms from, sent_email
Date features from time
Delete terms time
Cut numeric for cc, attach, dollar

Create dummy variables

email_rec <- email_rec %>%
  step_dummy(all_nominal(), -all_outcomes())

Recipe

Inputs:

      role #variables
   outcome          1
 predictor         20

Operations:

Delete terms from, sent_email
Date features from time
Delete terms time
Cut numeric for cc, attach, dollar
Dummy variables from all_nominal(), -all_outcomes()

Remove zero variance variables

Variables that contain only a single value

email_rec <- email_rec %>%
  step_zv(all_predictors())

Recipe

Inputs:

      role #variables
   outcome          1
 predictor         20

Operations:

Delete terms from, sent_email
Date features from time
Delete terms time
Cut numeric for cc, attach, dollar
Dummy variables from all_nominal(), -all_outcomes()
Zero variance filter on all_predictors()

All in one place

email_rec <- recipe(spam ~ ., data = email_train) %>%
  step_rm(from, sent_email) %>%
  step_date(time, features = c("dow", "month")) %>%
  step_rm(time) %>%
  step_cut(cc, attach, dollar, breaks = c(0, 1)) %>%
  step_dummy(all_nominal_predictors()) %>%
  step_zv(all_predictors())

Build a workflow

Define model

email_spec <- logistic_reg() %>%
  set_engine("glm")
email_spec

Logistic Regression Model Specification (classification)

Computational engine: glm

Define workflow

Remember: Workflows bring together models and recipes so that they can be easily applied to both the training and test data.

email_wflow <- workflow() %>%
  add_model(email_spec) %>%
  add_recipe(email_rec)

══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: logistic_reg()

── Preprocessor ────────────────────────────────────────────────────────────────
6 Recipe Steps

• step_rm()
• step_date()
• step_rm()
• step_cut()
• step_dummy()
• step_zv()

── Model ───────────────────────────────────────────────────────────────────────
Logistic Regression Model Specification (classification)

Computational engine: glm

Fit model to training data

email_fit <- email_wflow %>%
  fit(data = email_train)

tidy(email_fit) %>% print(n = 31)

# A tibble: 27 × 5
   term           estimate std.error statistic  p.value
   <chr>             <dbl>     <dbl>     <dbl>    <dbl>
 1 (Intercept)    -0.867     0.259     -3.34   8.32e- 4
 2 image          -1.72      0.941     -1.83   6.78e- 2
 3 inherit         0.359     0.179      2.01   4.48e- 2
 4 viagra          1.90     40.6        0.0469 9.63e- 1
 5 password       -0.951     0.405     -2.35   1.88e- 2
 6 num_char        0.0475    0.0246     1.93   5.35e- 2
 7 line_breaks    -0.00499   0.00140   -3.55   3.78e- 4
 8 exclaim_subj   -0.196     0.287     -0.682  4.95e- 1
 9 exclaim_mess    0.00845   0.00188    4.49   6.99e- 6
10 to_multiple_X1 -2.65      0.370     -7.17   7.78e-13
11 cc_X.1.68.     -0.350     0.518     -0.676  4.99e- 1
12 attach_X.1.21.  2.17      0.399      5.44   5.19e- 8
13 dollar_X.1.64.  0.122     0.230      0.529  5.97e- 1
14 winner_yes      2.25      0.438      5.14   2.79e- 7
15 format_X1      -0.945     0.165     -5.71   1.10e- 8
16 re_subj_X1     -2.96      0.463     -6.39   1.61e-10
17 urgent_subj_X1  4.77      1.26       3.79   1.51e- 4
18 number_small   -0.928     0.173     -5.36   8.48e- 8
19 number_big     -0.190     0.256     -0.740  4.59e- 1
20 time_dow_Mon    0.116     0.307      0.379  7.05e- 1
21 time_dow_Tue    0.394     0.279      1.41   1.58e- 1
22 time_dow_Wed   -0.175     0.285     -0.613  5.40e- 1
23 time_dow_Thu    0.134     0.288      0.467  6.41e- 1
24 time_dow_Fri    0.101     0.288      0.352  7.25e- 1
25 time_dow_Sat    0.308     0.310      0.995  3.20e- 1
26 time_month_Feb  0.767     0.187      4.11   3.99e- 5
27 time_month_Mar  0.524     0.186      2.82   4.81e- 3

Make predictions

Make predictions for test data

email_pred <- predict(email_fit, email_test, type = "prob") %>%
  bind_cols(email_test)
email_pred

# A tibble: 981 × 23
   .pred_0  .pred_1 spam  to_multiple from     cc sent_email time
     <dbl>    <dbl> <fct> <fct>       <fct> <int> <fct>      <dttm>
 1   0.962 0.0376   0     0           1         0 0          2012-01-01 02:03:59
 2   0.995 0.00461  0     1           1         0 1          2012-01-01 12:55:06
 3   0.999 0.00127  0     0           1         1 1          2012-01-01 14:38:32
 4   0.997 0.00281  0     0           1         2 0          2012-01-01 18:32:53
 5   0.987 0.0128   0     0           1         0 0          2012-01-02 00:42:16
 6   0.999 0.000886 0     0           1         1 0          2012-01-02 10:12:51
 7   0.994 0.00633  0     0           1         4 0          2012-01-02 11:45:36
 8   0.851 0.149    0     0           1         0 0          2012-01-02 16:55:03
 9   0.968 0.0318   0     0           1         0 0          2012-01-02 20:07:17
10   0.997 0.00277  0     0           1         0 1          2012-01-02 23:34:50
# … with 971 more rows, and 15 more variables: image <dbl>, attach <dbl>,
#   dollar <dbl>, winner <fct>, inherit <dbl>, viagra <dbl>, password <dbl>,
#   num_char <dbl>, line_breaks <int>, format <fct>, re_subj <fct>,
#   exclaim_subj <dbl>, urgent_subj <fct>, exclaim_mess <dbl>, number <fct>

A closer look at predictions

Which of the following 10 emails will be misclassified?

email_pred %>%
  arrange(desc(.pred_1)) %>%
  select(contains("pred"), spam)

# A tibble: 981 × 3
   .pred_0 .pred_1 spam
     <dbl>   <dbl> <fct>
 1  0.0223   0.978 1
 2  0.107    0.893 0
 3  0.109    0.891 1
 4  0.140    0.860 1
 5  0.149    0.851 0
 6  0.163    0.837 1
 7  0.197    0.803 0
 8  0.207    0.793 0
 9  0.235    0.765 1
10  0.240    0.760 1
# … with 971 more rows

Sensitivity and specificity

False positive and negative

	Email is spam	Email is not spam
Email classified as spam	True positive	False positive (Type 1 error)
Email classified as not spam	False negative (Type 2 error)	True negative

• False negative rate = P(classified as not spam | Email spam) = FN / (TP + FN)

• False positive rate = P(classified as spam | Email not spam) = FP / (FP + TN)

Sensitivity and specificity

	Email is spam	Email is not spam
Email classified as spam	True positive	False positive (Type 1 error)
Email classified as not spam	False negative (Type 2 error)	True negative

• Sensitivity = P(classified as spam | Email spam) = TP / (TP + FN)
  • Sensitivity = 1 − False negative rate
• Specificity = P(classified as not spam | Email not spam) = TN / (FP + TN)
  • Specificity = 1 − False positive rate

If you were designing a spam filter, would you want sensitivity and specificity to be high or low? What are the trade-offs associated with each decision?

Evaluate the performance

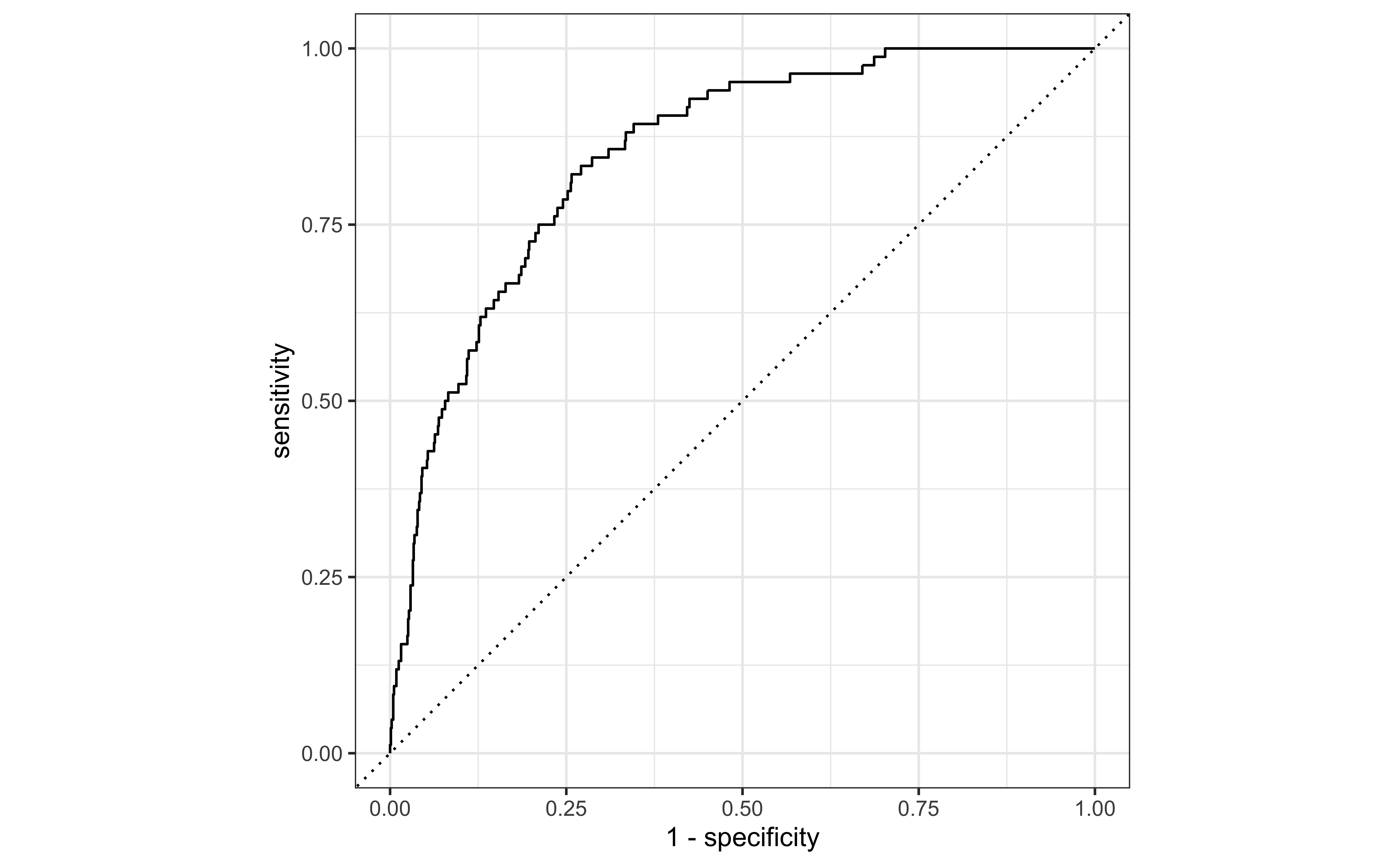

Receiver operating characteristic (ROC) curve⁺ which plot true positive rate vs. false positive rate (1 - specificity).

email_pred %>%
  roc_curve(
    truth = spam,
    .pred_1,
    event_level = "second"
  ) %>%
  autoplot()

⁺ Originally developed for operators of military radar receivers, hence the name.

ROC curve, under the hood

email_pred %>%
  roc_curve(
    truth = spam,
    .pred_1,
    event_level = "second"
  )

# A tibble: 981 × 3
    .threshold specificity sensitivity
         <dbl>       <dbl>       <dbl>
 1 -Inf            0                 1
 2    1.31e-13     0                 1
 3    2.63e- 8     0.00111           1
 4    5.75e- 6     0.00223           1
 5    1.36e- 5     0.00334           1
 6    2.33e- 5     0.00446           1
 7    2.74e- 5     0.00557           1
 8    3.28e- 5     0.00669           1
 9    4.59e- 5     0.00780           1
10    4.78e- 5     0.00892           1
# … with 971 more rows

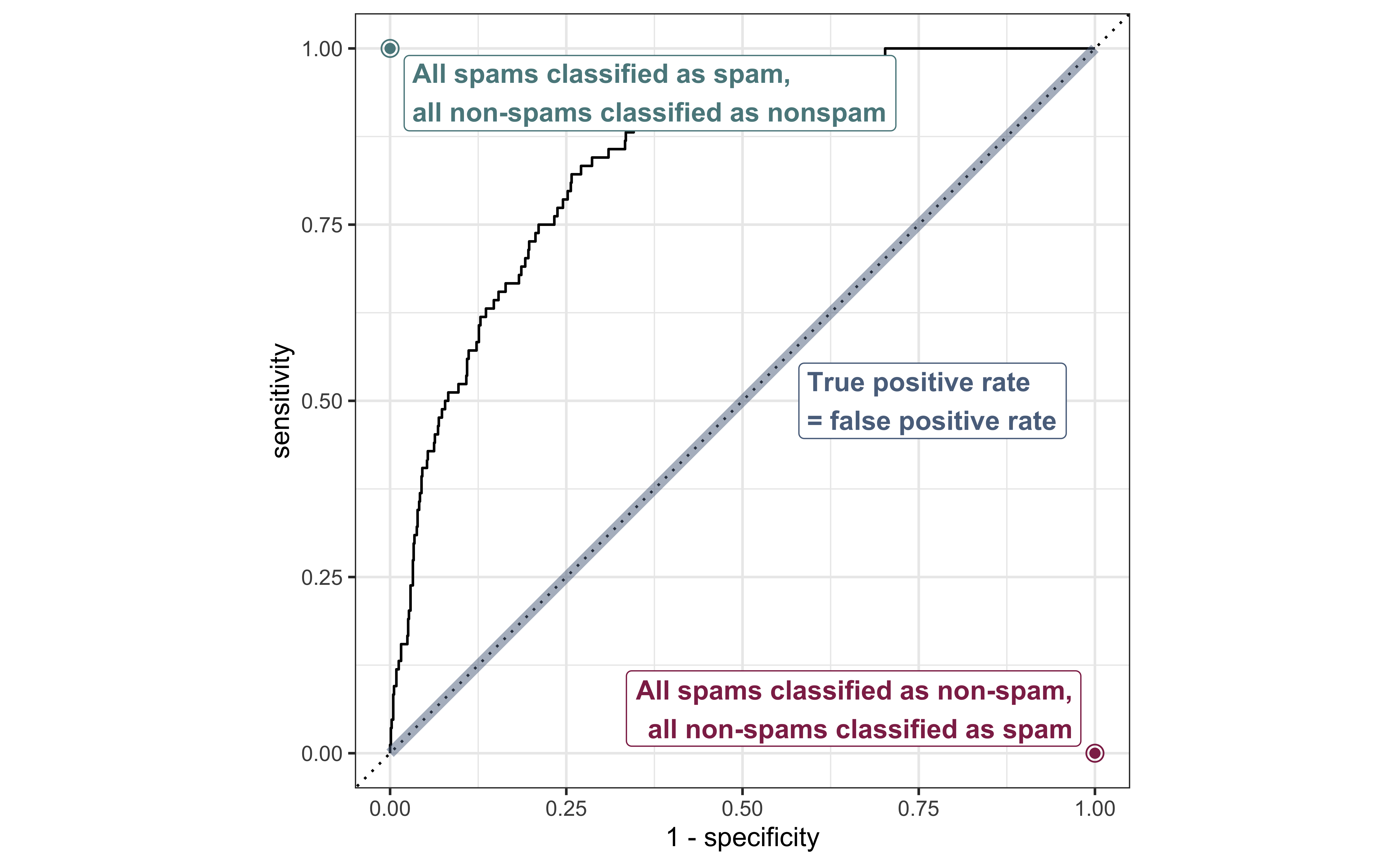

ROC curve

Evaluate the performance

email_pred %>%
  roc_auc(
    truth = spam,
    .pred_1,
    event_level = "second"
  )

# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 roc_auc binary         0.850

Make decisions

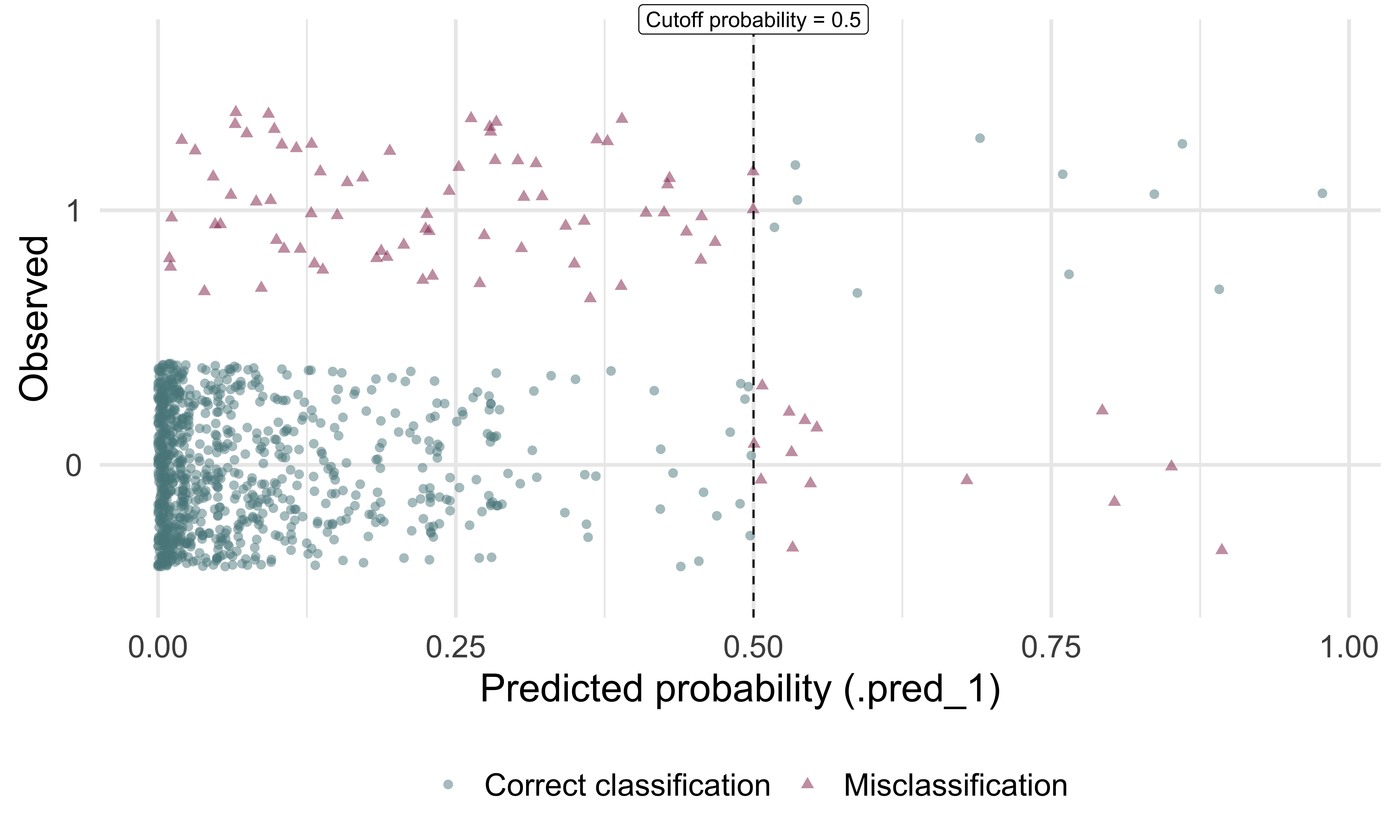

Cutoff probability: 0.5

• Output
• Code

Suppose we decide to label an email as spam if the model predicts the probability of spam to be more than 0.5.

	Email is not spam	Email is spam
Email classified as not spam	883	73
Email classified as spam	14	11

cutoff_prob <- 0.5
email_pred %>%
  mutate(
    spam_pred = as_factor(if_else(.pred_1 >= cutoff_prob, 1, 0)),
    spam      = if_else(spam == 1, "Email is spam", "Email is not spam"),
    spam_pred = if_else(spam_pred == 1, "Email classified as spam", "Email classified as not spam")
    ) %>%
  count(spam_pred, spam) %>%
  pivot_wider(names_from = spam, values_from = n) %>%
  kable(col.names = c("", "Email is not spam", "Email is spam"))

Confusion matrix

Cross-tabulation of observed and predicted classes:

email_pred %>%
  mutate(spam_predicted = as_factor(if_else(.pred_1 >= cutoff_prob, 1, 0))) %>%
  conf_mat(truth = spam, estimate = spam_predicted)

          Truth
Prediction   0   1
         0 883  73
         1  14  11

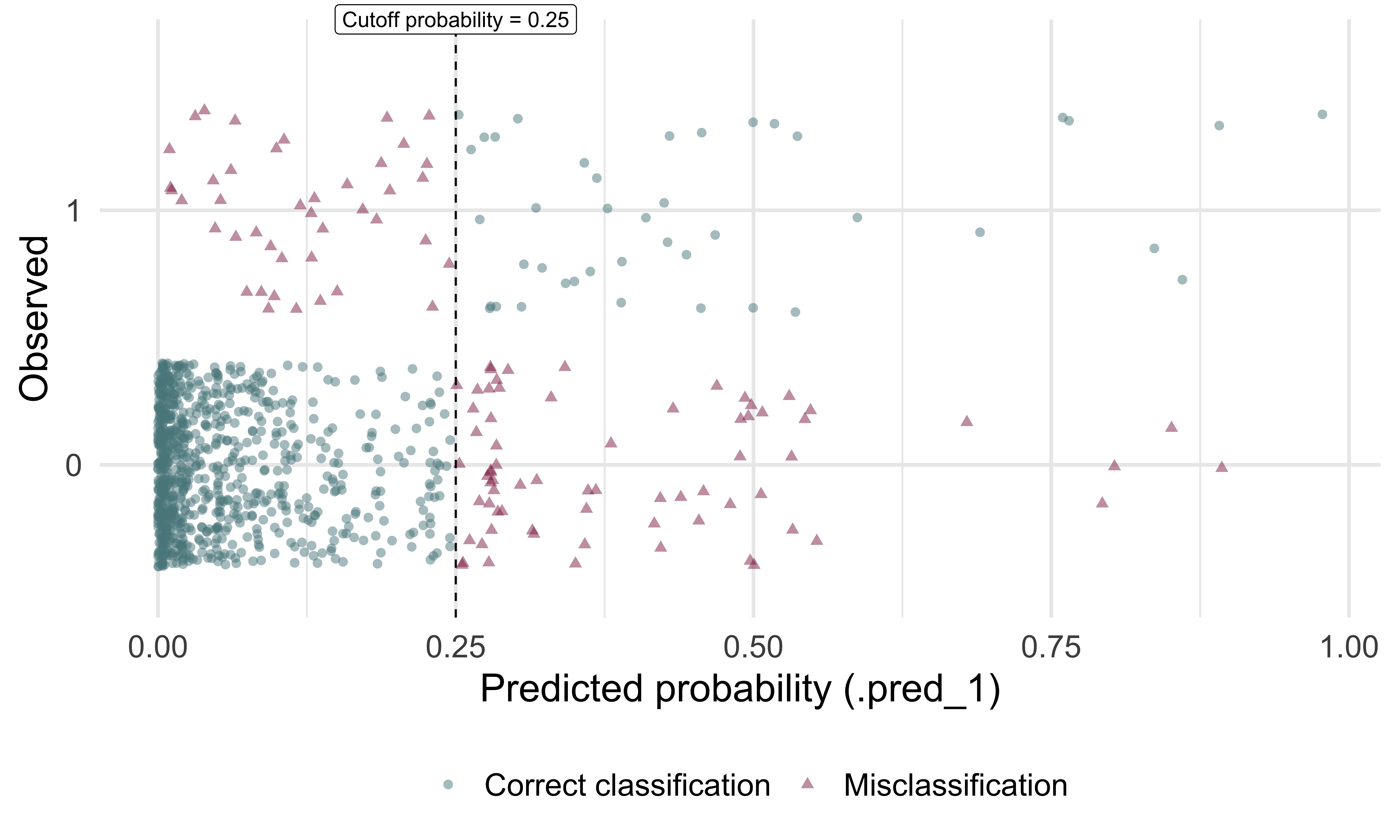

Classification

Cutoff probability: 0.25

• Output
• Code

Suppose we decide to label an email as spam if the model predicts the probability of spam to be more than 0.25.

	Email is not spam	Email is spam
Email classified as not spam	826	42
Email classified as spam	71	42

cutoff_prob <- 0.25
email_pred %>%
  mutate(
    spam_pred = as_factor(if_else(.pred_1 >= cutoff_prob, 1, 0)),
    spam      = if_else(spam == 1, "Email is spam", "Email is not spam"),
    spam_pred = if_else(spam_pred == 1, "Email classified as spam", "Email classified as not spam")
    ) %>%
  count(spam_pred, spam) %>%
  pivot_wider(names_from = spam, values_from = n) %>%
  kable(col.names = c("", "Email is not spam", "Email is spam"))

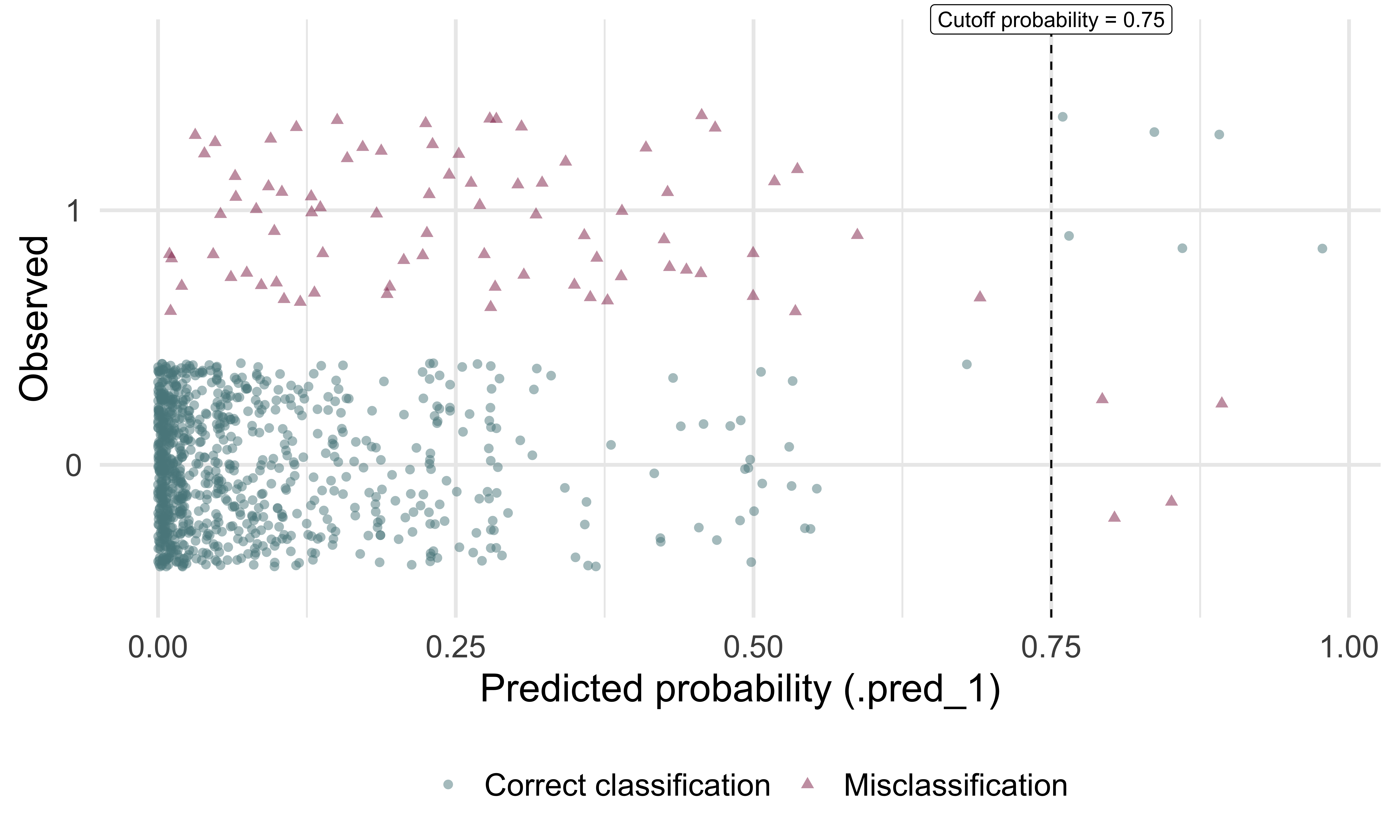

Classification

Cutoff probability: 0.75

• Output
• Code

Suppose we decide to label an email as spam if the model predicts the probability of spam to be more than 0.75.

	Email is not spam	Email is spam
Email classified as not spam	893	78
Email classified as spam	4	6

cutoff_prob <- 0.75
email_pred %>%
  mutate(
    spam_pred = as_factor(if_else(.pred_1 >= cutoff_prob, 1, 0)),
    spam      = if_else(spam == 1, "Email is spam", "Email is not spam"),
    spam_pred = if_else(spam_pred == 1, "Email classified as spam", "Email classified as not spam")
    ) %>%
  count(spam_pred, spam) %>%
  pivot_wider(names_from = spam, values_from = n) %>%
  kable(col.names = c("", "Email is not spam", "Email is spam"))

Classification
