MultiLR: Predictive models

STA 210 - Spring 2022

Dr. Mine Çetinkaya-Rundel

Welcome

Topics

  • Building predictive multinomial logistic regression models
  • Comparing models

Computational setup

# load packages
library(tidyverse)
library(tidymodels)
library(knitr)
library(colorblindr)
library(themis)

# set default theme and larger font size for ggplot2
ggplot2::theme_set(ggplot2::theme_minimal(base_size = 16))

Terminology

What’s the difference between regression and classification?

  • Logistic regression / binary classification
  • Multinomial logistic regression / multinomial classification

Data

Volcanoes

The data come from The Smithsonian Institution, via TidyTuesday.

volcano <- read_csv(here::here("slides", "data/volcano.csv"))
names(volcano)
 [1] "volcano_number"           "volcano_name"
 [3] "primary_volcano_type"     "last_eruption_year"
 [5] "country"                  "region"
 [7] "subregion"                "latitude"
 [9] "longitude"                "elevation"
[11] "tectonic_settings"        "evidence_category"
[13] "major_rock_1"             "major_rock_2"
[15] "major_rock_3"             "major_rock_4"
[17] "major_rock_5"             "minor_rock_1"
[19] "minor_rock_2"             "minor_rock_3"
[21] "minor_rock_4"             "minor_rock_5"
[23] "population_within_5_km"   "population_within_10_km"
[25] "population_within_30_km"  "population_within_100_km"

Volcanoes

glimpse(volcano)
Rows: 958
Columns: 26
$ volcano_number           <dbl> 283001, 355096, 342080, 213004, 321040, 28317…
$ volcano_name             <chr> "Abu", "Acamarachi", "Acatenango", "Acigol-Ne…
$ primary_volcano_type     <chr> "Shield(s)", "Stratovolcano", "Stratovolcano(…
$ last_eruption_year       <chr> "-6850", "Unknown", "1972", "-2080", "950", "…
$ country                  <chr> "Japan", "Chile", "Guatemala", "Turkey", "Uni…
$ region                   <chr> "Japan, Taiwan, Marianas", "South America", "…
$ subregion                <chr> "Honshu", "Northern Chile, Bolivia and Argent…
$ latitude                 <dbl> 34.500, -23.292, 14.501, 38.537, 46.206, 37.6…
$ longitude                <dbl> 131.600, -67.618, -90.876, 34.621, -121.490, …
$ elevation                <dbl> 641, 6023, 3976, 1683, 3742, 1728, 1733, 1250…
$ tectonic_settings        <chr> "Subduction zone / Continental crust (>25 km)…
$ evidence_category        <chr> "Eruption Dated", "Evidence Credible", "Erupt…
$ major_rock_1             <chr> "Andesite / Basaltic Andesite", "Dacite", "An…
$ major_rock_2             <chr> "Basalt / Picro-Basalt", "Andesite / Basaltic…
$ major_rock_3             <chr> "Dacite", " ", " ", "Basalt / Picro-Basalt", …
$ major_rock_4             <chr> " ", " ", " ", "Andesite / Basaltic Andesite"…
$ major_rock_5             <chr> " ", " ", " ", " ", " ", " ", " ", " ", " ", …
$ minor_rock_1             <chr> " ", " ", "Basalt / Picro-Basalt", " ", "Daci…
$ minor_rock_2             <chr> " ", " ", " ", " ", " ", "Basalt / Picro-Basa…
$ minor_rock_3             <chr> " ", " ", " ", " ", " ", " ", " ", "Andesite …
$ minor_rock_4             <chr> " ", " ", " ", " ", " ", " ", " ", " ", " ", …
$ minor_rock_5             <chr> " ", " ", " ", " ", " ", " ", " ", " ", " ", …
$ population_within_5_km   <dbl> 3597, 0, 4329, 127863, 0, 428, 101, 51, 0, 98…
$ population_within_10_km  <dbl> 9594, 7, 60730, 127863, 70, 3936, 485, 6042, …
$ population_within_30_km  <dbl> 117805, 294, 1042836, 218469, 4019, 717078, 1…
$ population_within_100_km <dbl> 4071152, 9092, 7634778, 2253483, 393303, 5024…

Types of volcanoes

Probably too many types!

volcano %>%
  count(primary_volcano_type, sort = TRUE) %>%
  print(n = 26)
# A tibble: 26 × 2
   primary_volcano_type     n
   <chr>                <int>
 1 Stratovolcano          353
 2 Stratovolcano(es)      107
 3 Shield                  85
 4 Volcanic field          71
 5 Pyroclastic cone(s)     70
 6 Caldera                 65
 7 Complex                 46
 8 Shield(s)               33
 9 Submarine               27
10 Lava dome(s)            26
11 Fissure vent(s)         12
12 Caldera(s)               9
13 Compound                 9
14 Maar(s)                  8
15 Pyroclastic shield       7
16 Tuff cone(s)             7
17 Crater rows              5
18 Subglacial               5
19 Pyroclastic cone         4
20 Lava dome                3
21 Complex(es)              1
22 Lava cone                1
23 Lava cone(es)            1
24 Lava cone(s)             1
25 Stratovolcano?           1
26 Tuff cone                1

Relevel volcanoes

volcano <- volcano %>%
  mutate(
    volcano_type = case_when(
      str_detect(primary_volcano_type, "Stratovolcano") ~ "Stratovolcano",
      str_detect(primary_volcano_type, "Shield") ~ "Shield",
      TRUE ~ "Other"
    ),
    volcano_type = fct_relevel(volcano_type, "Stratovolcano", "Shield", "Other")
  )

volcano %>%
  count(volcano_type)
# A tibble: 3 × 2
  volcano_type      n
  <fct>         <int>
1 Stratovolcano   461
2 Shield          118
3 Other           379

Data prep

  • Select a few variables as predictors for the model with
  • Convert all character variables to factors
volcano <- volcano %>%
  select(
    volcano_type, latitude, longitude,
    elevation, tectonic_settings, major_rock_1
    ) %>%
  mutate(across(where(is.character), as_factor))

Mapping the volcanoes

World map data

world <- map_data("world")

world %>% as_tibble()
# A tibble: 99,338 × 6
    long   lat group order region subregion
   <dbl> <dbl> <dbl> <int> <chr>  <chr>
 1 -69.9  12.5     1     1 Aruba  <NA>
 2 -69.9  12.4     1     2 Aruba  <NA>
 3 -69.9  12.4     1     3 Aruba  <NA>
 4 -70.0  12.5     1     4 Aruba  <NA>
 5 -70.1  12.5     1     5 Aruba  <NA>
 6 -70.1  12.6     1     6 Aruba  <NA>
 7 -70.0  12.6     1     7 Aruba  <NA>
 8 -70.0  12.6     1     8 Aruba  <NA>
 9 -69.9  12.5     1     9 Aruba  <NA>
10 -69.9  12.5     1    10 Aruba  <NA>
# … with 99,328 more rows

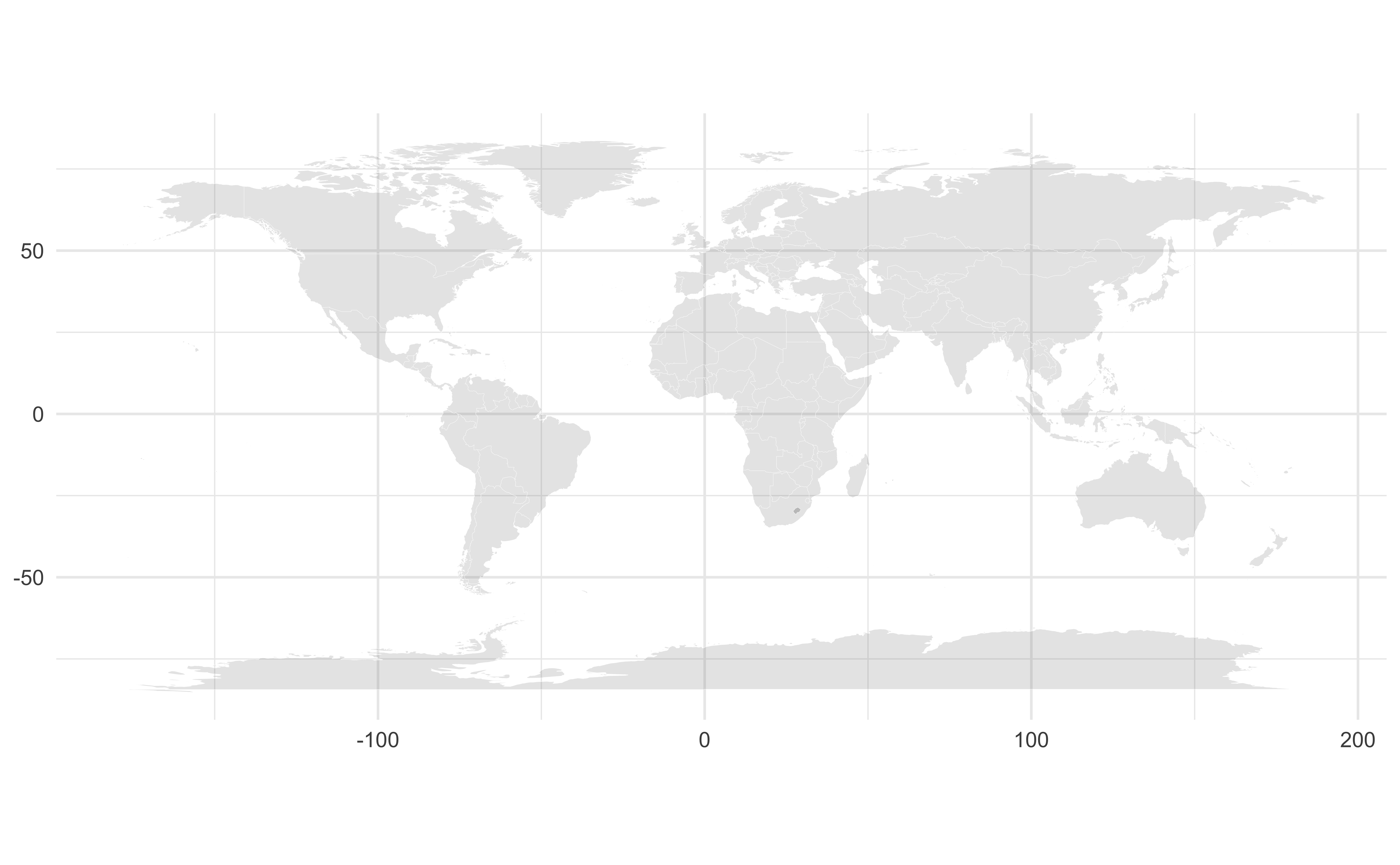

Draw world map

world_map <- ggplot() +
  geom_polygon(
    data = world,
    aes(
      x = long, y = lat, group = group),
      color = "white", fill = "gray50",
      size = 0.05, alpha = 0.2
    ) +
  theme_minimal() +
  coord_quickmap() +
  labs(x = NULL, y = NULL)

world_map

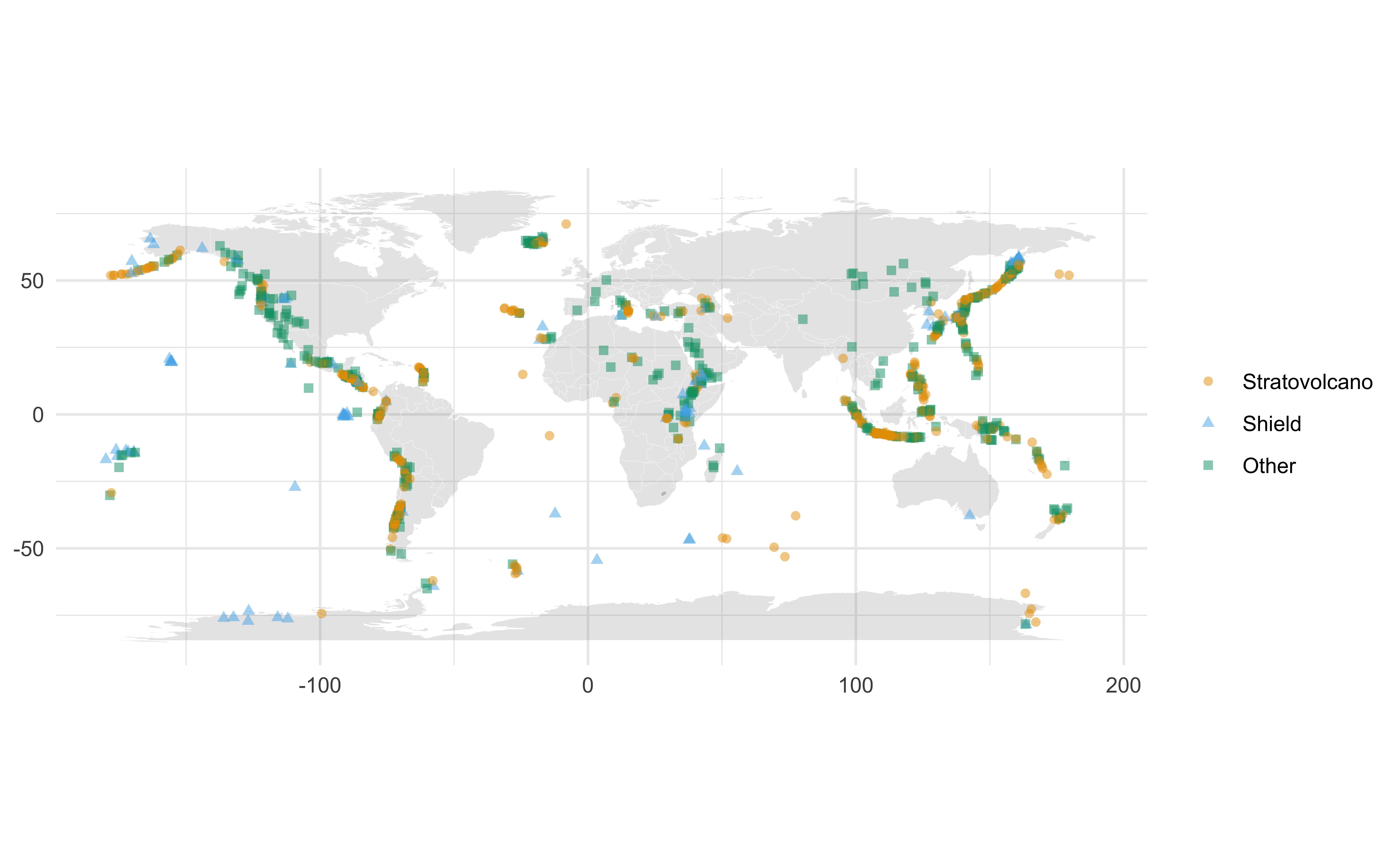

Add volcanoes

world_map +
  geom_point(
    data = volcano,
    aes(
      x = longitude, y = latitude,
      color = volcano_type,
      shape = volcano_type),
    alpha = 0.5
  ) +
  scale_color_OkabeIto() +
  labs(color = NULL, shape = NULL)

Your turn

📋 github.com/sta210-s22/ae-11-volcanoes - Exercise 1

Build a model

Split into testing/training

set.seed(1234)

volcano_split <- initial_split(volcano)
volcano_train <- training(volcano_split)
volcano_test  <- testing(volcano_split)

Create a recipe

Start with a model that doesn’t use geographic information:

volcano_rec1 <- recipe(volcano_type ~ ., data = volcano_train) %>%
  step_rm(latitude, longitude) %>%
  step_other(tectonic_settings) %>%
  step_other(major_rock_1) %>%
  step_dummy(all_nominal_predictors()) %>%
  step_zv(all_predictors()) %>%
  step_center(all_predictors())

Specify a model

volcano_spec <- multinom_reg() %>%
  set_engine("nnet")

volcano_spec
Multinomial Regression Model Specification (classification)

Computational engine: nnet

Create a workflow

volcano_wflow1 <- workflow() %>%
  add_recipe(volcano_rec1) %>%
  add_model(volcano_spec)

volcano_wflow1
══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: multinom_reg()

── Preprocessor ────────────────────────────────────────────────────────────────
6 Recipe Steps

• step_rm()
• step_other()
• step_other()
• step_dummy()
• step_zv()
• step_center()

── Model ───────────────────────────────────────────────────────────────────────
Multinomial Regression Model Specification (classification)

Computational engine: nnet

Create cross validation folds

set.seed(9876)

volcano_folds <- vfold_cv(volcano_train, v = 5)
volcano_folds
#  5-fold cross-validation
# A tibble: 5 × 2
  splits            id
  <list>            <chr>
1 <split [574/144]> Fold1
2 <split [574/144]> Fold2
3 <split [574/144]> Fold3
4 <split [575/143]> Fold4
5 <split [575/143]> Fold5

Fit resamples

volcano_fit_rs1 <- volcano_wflow1 %>%
  fit_resamples(
    volcano_folds,
    control = control_resamples(save_pred = TRUE)
    )

volcano_fit_rs1
# Resampling results
# 5-fold cross-validation
# A tibble: 5 × 5
  splits            id    .metrics         .notes           .predictions
  <list>            <chr> <list>           <list>           <list>
1 <split [574/144]> Fold1 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [144 × 7]>
2 <split [574/144]> Fold2 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [144 × 7]>
3 <split [574/144]> Fold3 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [144 × 7]>
4 <split [575/143]> Fold4 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [143 × 7]>
5 <split [575/143]> Fold5 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [143 × 7]>

Collect metrics

collect_metrics(volcano_fit_rs1)
# A tibble: 2 × 6
  .metric  .estimator  mean     n std_err .config
  <chr>    <chr>      <dbl> <int>   <dbl> <chr>
1 accuracy multiclass 0.596     5  0.0146 Preprocessor1_Model1
2 roc_auc  hand_till  0.703     5  0.0244 Preprocessor1_Model1

ROC curve

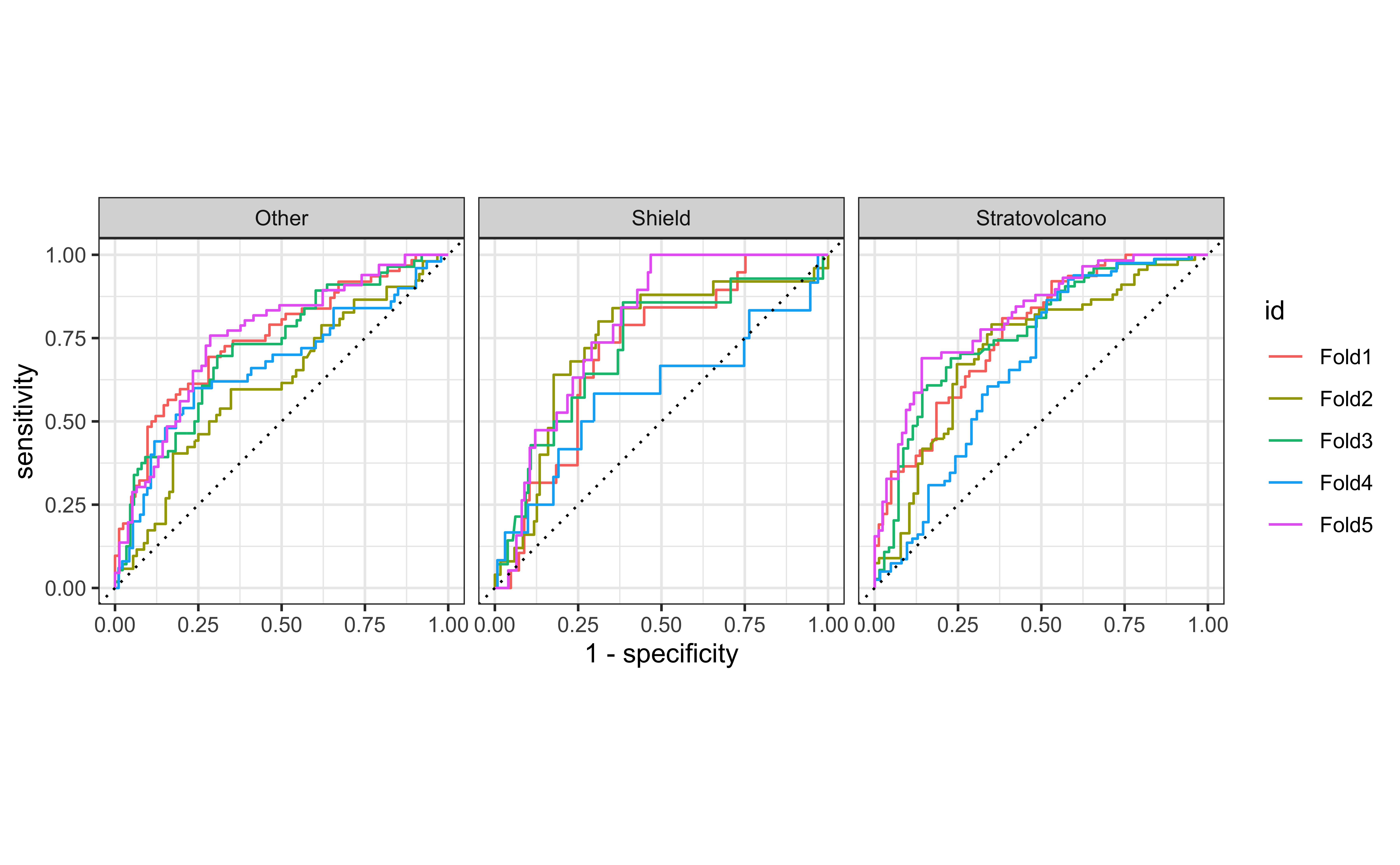

ROC curves for multiclass outcomes use a one-vs-all approach: calculate multiple curves, one per level vs. all other levels.

volcano_fit_rs1 %>%
  collect_predictions() %>%
  group_by(id) %>%
  roc_curve(
    truth = volcano_type,
    .pred_Stratovolcano:.pred_Other
  ) %>%
  autoplot()

ROC curve

ROC curve - under the hood

An additional column, .level, identifies the “one” column in the one-vs-all calculation:

volcano_fit_rs1 %>%
  collect_predictions() %>%
  group_by(id) %>%
  roc_curve(
    truth = volcano_type,
    .pred_Stratovolcano:.pred_Other
  )
# A tibble: 2,175 × 5
# Groups:   id [5]
   id    .level        .threshold specificity sensitivity
   <chr> <chr>              <dbl>       <dbl>       <dbl>
 1 Fold1 Stratovolcano  -Inf           0                1
 2 Fold1 Stratovolcano     0.0621      0                1
 3 Fold1 Stratovolcano     0.0786      0.0123           1
 4 Fold1 Stratovolcano     0.0869      0.0247           1
 5 Fold1 Stratovolcano     0.0957      0.0370           1
 6 Fold1 Stratovolcano     0.104       0.0494           1
 7 Fold1 Stratovolcano     0.104       0.0617           1
 8 Fold1 Stratovolcano     0.105       0.0741           1
 9 Fold1 Stratovolcano     0.105       0.0864           1
10 Fold1 Stratovolcano     0.107       0.0988           1
# … with 2,165 more rows

Build another model

Your turn

📋 github.com/sta210-s22/ae-11-volcanoes - Exercise 2

Acknowledgements

Inspired by

  • https://juliasilge.com/blog/multinomial-volcano-eruptions/
  • https://juliasilge.com/blog/nber-papers/
